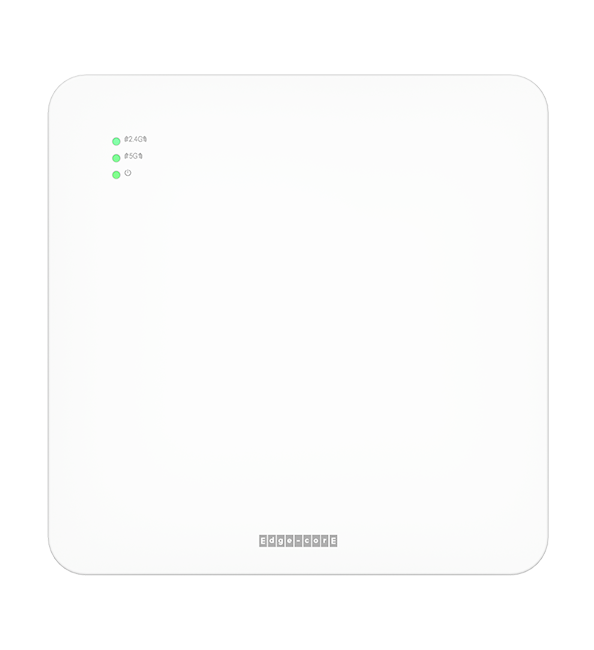

Wi-Fi 6 商用室內 無線基地台
Edgecore Edge-corE EAP101 無線基地台
- Concurrent Dual-Band 2.4GHz & 5GHz
- 2×2:2 UL MU-MIMO
- Support BLE/ Zigbee
- 1 x 2.5GbE PoE WAN ；2 x GbE LAN
- Support ecCLOUD
- 建達料號：ROECEAP101
- 原廠型號：
EAP101
- 建議售價：$ 8,320 (含稅)

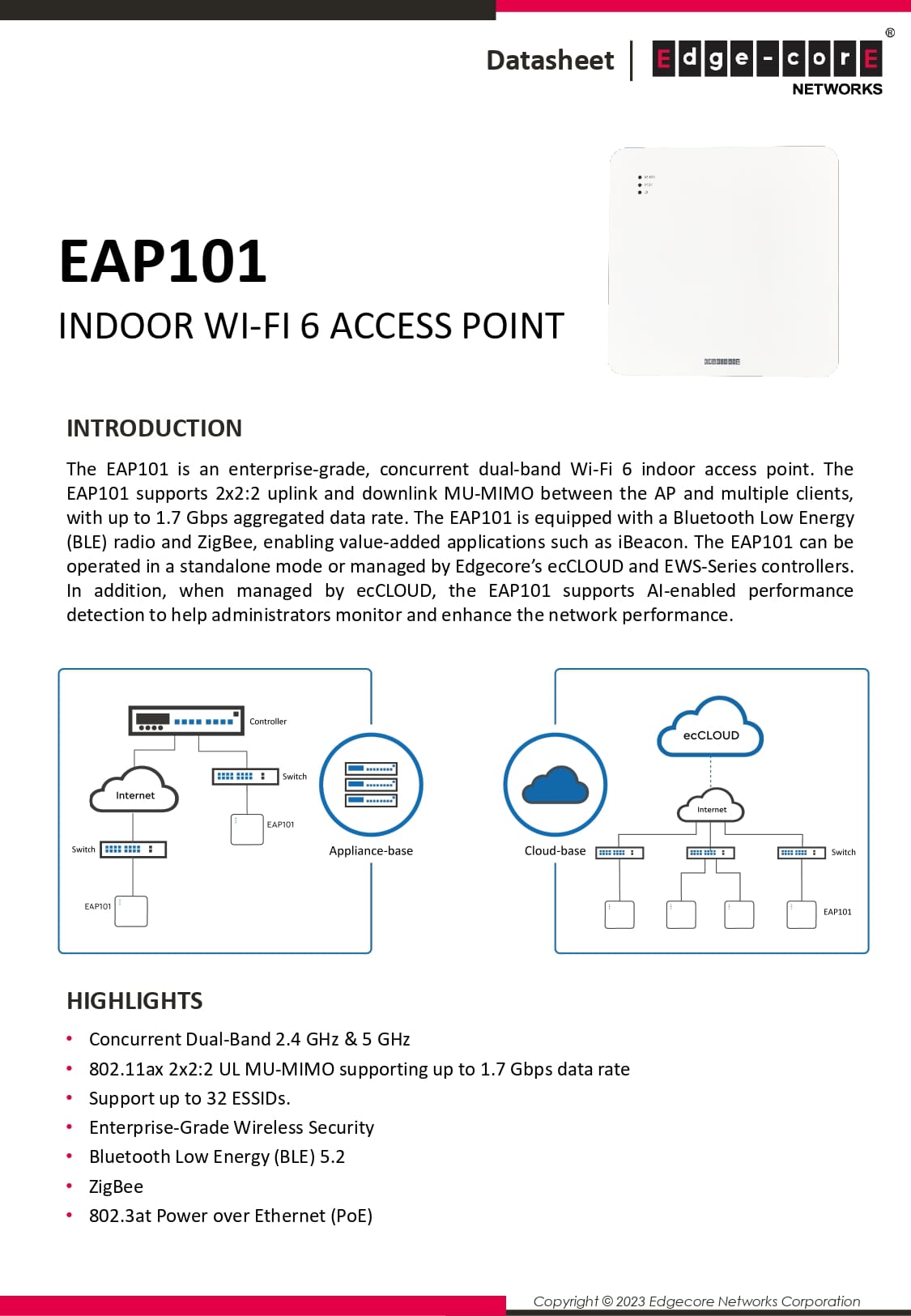

EAP101 is an enterprise-grade, concurrent dual-band Wi-Fi 6 indoor access point. EAP101 supports 2×2:2 uplink and downlink MU-MIMO between the AP and multiple clients, with up to 1.7Gbps aggregated data rate. EAP101 is equipped with Bluetooth Low Energy (BLE) radio enabling value-added applications such as iBeacon, presence.
EAP101 can be operated as standalone mode or managed by Edgecore ecCLOUD cloud controller.
EAP101 can be operated as standalone mode or managed by Edgecore ecCLOUD cloud controller.

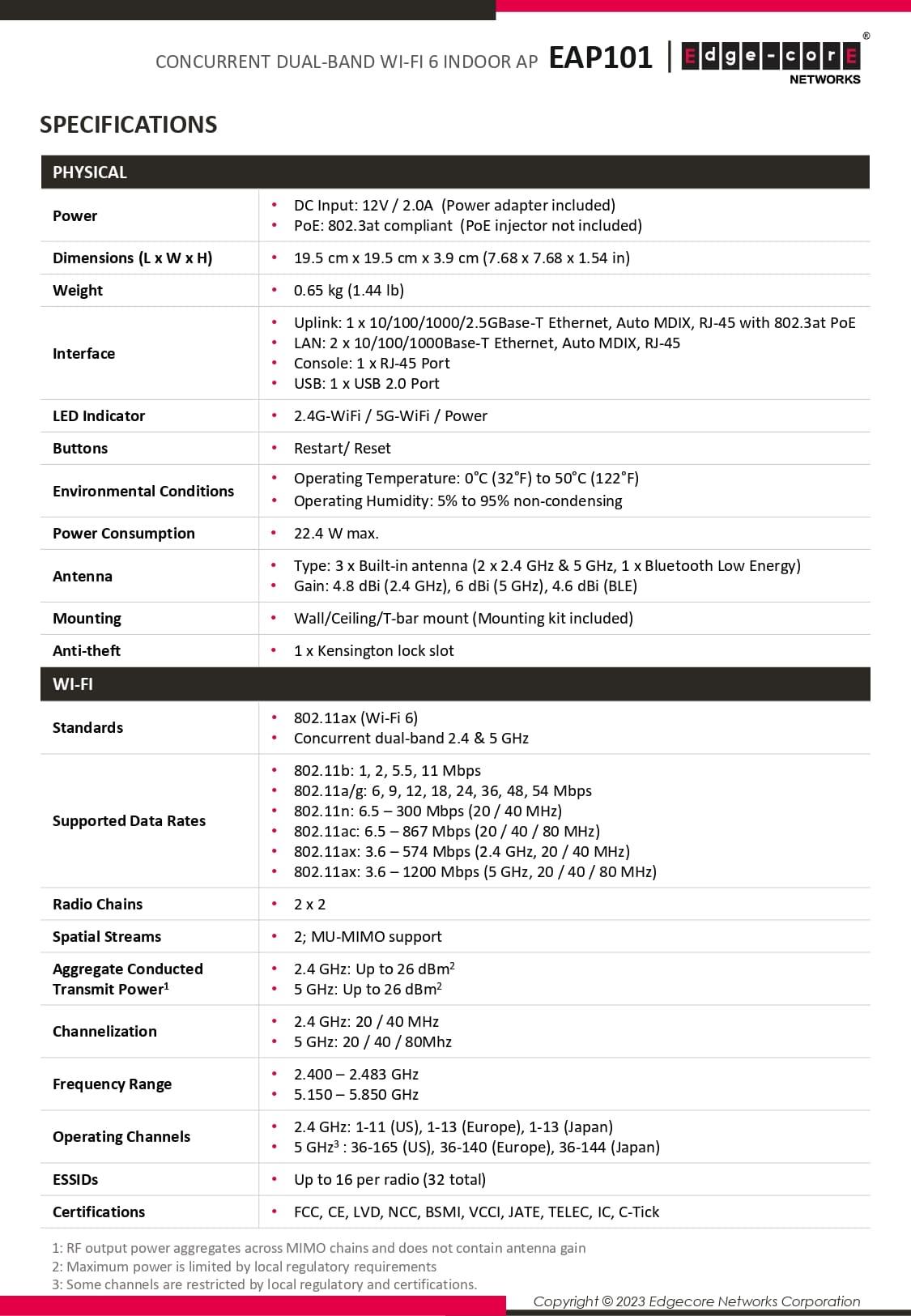

規格
Standards:
• 802.11ax (Wi-Fi 6)
• Concurrent dual-band 2.4 GHz & 5 GHz
Radio Chains:
• 2 x2
Spatial Streams:
• 2; MU-MIMO support
Aggregate Conducted Transmit Power:
• 2.4 GHz: Up to 26 dBm
• 5 GHz: Up to 26 dBm
Channelization:
• 2.4 GHz: 20 / 40 MHz
• 5 GHz: 20 / 40 / 80Mhz
Frequency Range:
• 2.400 –2.483 GHz
• 5.150 –5.850 GHz
Operating Channels:
• 2.4 GHz: 1-11 (US), 1-13 (Europe), 1-13 (Japan)
• 5 GHz : 36-165 (US), 36-140 (Europe), 36-144 (Japan)
ESSIDs:
• Up to 16 per radio (32 total)
| DOA天數 | 1.自購買日起7日內以購買發票作為憑證。 2.若無有效憑證將以建達出貨起算30天。 3. 新品報修需配件齊全、完整包裝 |
|---|---|
| 故障處理方式 | 經檢測確認硬體故障且無人損瑕疵、缺件，將以新品更換。 |
| 運費計算 | |
| 保固期 | 產品保固期3年，變壓器屬耗材保固期為3個月。 |
